Architectural Lighting ControlDMX Address Writer and DMX Easy Controller Model: DMX-ADDR-WR/WD DMX-EAS
Product Overview
DMX-ADDR-WR/WD DMX-EAS is a DMX Address Writer and DMX Easy Controller for architectural lighting control systems. It is built around DMX signal addressing, distribution or controller connection needs, helping contractors and system integrators connect RGB, RGBW and monochrome luminaires in permanent project installations.
Supports standard USITT DMX512/1990 protocol.
Built-in 12/20 conventional effects.
DMX 3/4 channels, address can be adjusted.
Built-in power supply, can be easily connected to RGB/RGBW and monochrome luminaries with 24V input.
Product Specifications
ProtocolUSITT DMX512/1990
ConnectorIP68 connector
Model Configuration

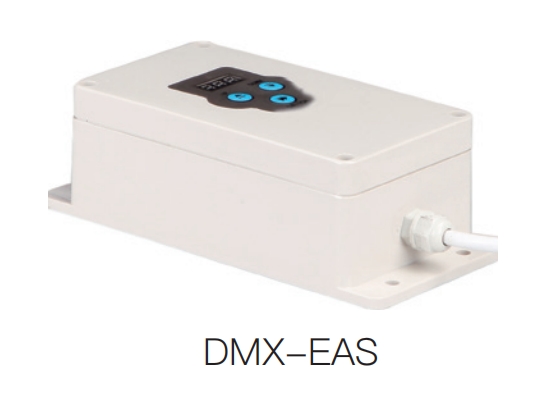

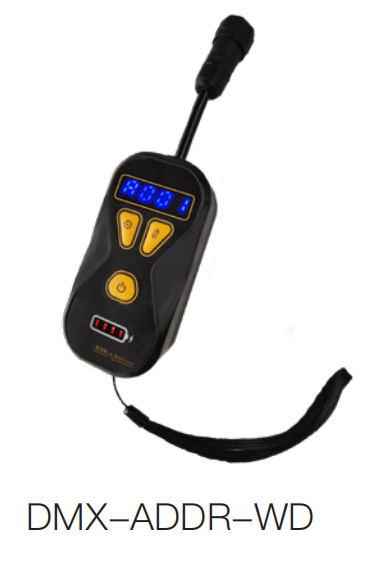

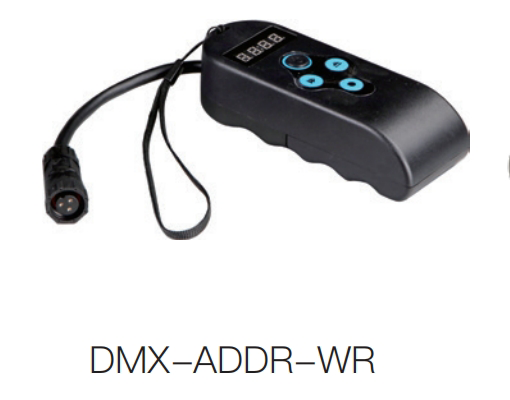

| Model | DMX-ADDR-WR | RDM-ADDR-WD | DMX-EAS-24V |
|---|---|---|---|
| Size | L132xW49xH36mm | L100xW50xH30mm | L200xW89xH61mm |
| Main body | PC | PC | ABS |
| Weight | 0.15kgs±5% | 0.13kgs±5% | 1.5kgs±5% |
| Input Volt | 9V DC | 9VDC | 120 or 240V AC |
| Power | 0.3W | 0.4W | 35W/60W |
| Terminal | 3 Pin IP68 Connector | 3pins IP68 connector | 5 Pins IP68 connector |
| Compatible | UCS512/Hi512 | RDM | DMX |
